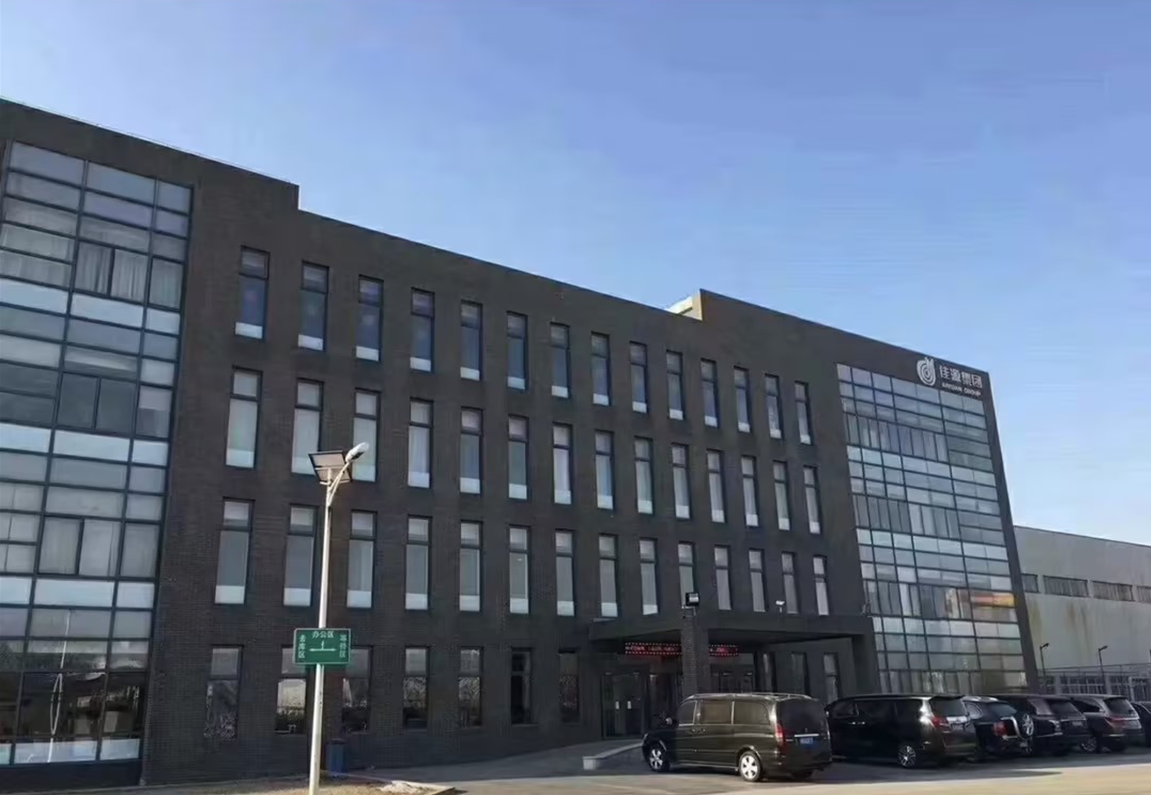

Founded in 2017 and backed by Jiayuan Group (est. 1996), Lizhong Precision is a 40,000 m² heavy fabrication company in Tangshan, Hebei — China's steel heartland. With RMB 50 million registered capital and 166 specialists, we deliver complete part families from raw steel to ready-to-install components.

As a strategic steel procurement partner of HBIS Group and Shougang Steel, we source premium medium/heavy plate and structural steel at preferred pricing — and pass those savings through to our customers' BOM cost.

Our proprietary MES digital system (software patent), paired with a 12-person QC team and on-site CMM, ensures every order is traceable from incoming material to final delivery inspection.

40,000

m² Workshop Area

166

Total Employees

3+1

Patents Held

2017

Year Founded

Certifications & Standards

Internationally certified.
Consistently compliant.

🏆

ISO 9001

Quality Management System

🌿

ISO 14001:2015

Environmental Management

🛡

ISO 45001:2018

Occupational Health & Safety

🔬

National High-Tech Enterprise

PRC Government Recognized

💻

MES Software Patent

Proprietary Digital Manufacturing

Core Values Selfless Service· Goodness & Progress· Commerce with Ethics· Benefiting Society

Manufacturing Capabilities

Eight services.
Zero outsourcing.

Every process from steel procurement to sandblasting happens within our 40,000 m² campus — giving you a single accountable partner, shorter lead times, and lower total cost.

01 · Raw Material

Steel Procurement & Custom Supply

Strategic partner of HBIS Group and Shougang Steel. We supply premium medium/heavy plate, coil plate, H-beam, channel, angle, and pipe steel — with custom pre-cut delivery. Vestas-grade and Sumitomo welding plate available.

HBIS Partner Shougang Partner Medium & Heavy Plate Pre-cut Delivery

02 · Cutting

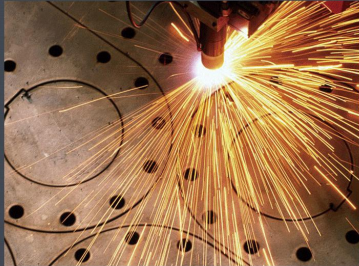

Laser & Flame Cutting

6 fiber laser cutters + 1 heavy-duty flame cutter: flat plate from 0.5 mm to 400 mm thickness. A dedicated structural steel laser handles H-beam, channel, angle, and round/square tube up to Ø350 mm OD — zero secondary deburring needed.

0.5 – 400 mm 6 Laser Cutters Structural Steel Laser Ø350 mm Max OD

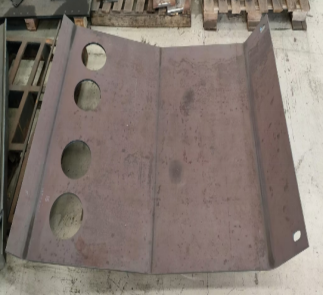

Cutting · Sample Parts

Precision blanks for world-class OEMs

Laser-cut structural blanks and near-net-shape components produced for Sumitomo Construction Machinery, Vestas Wind, Siemens Wind, and Sany Heavy Industry. Burr-free surfaces, first-off dimensional records, and full material certificates supplied with every batch.

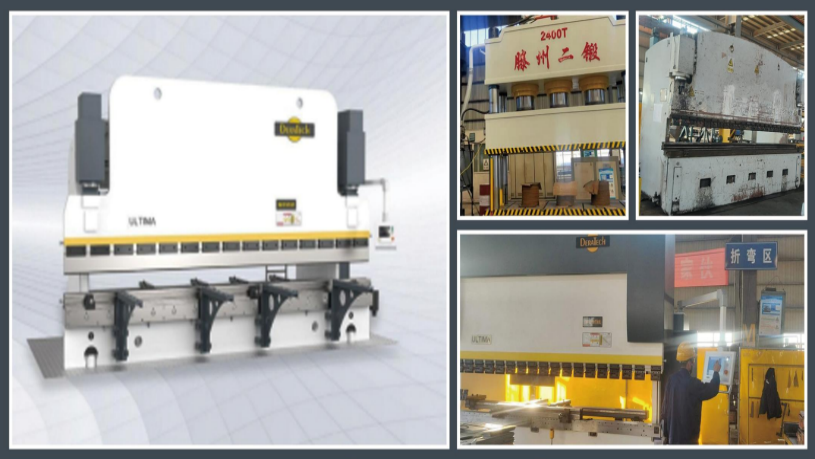

03 · Bending

CNC Press Brake & Forming

Four electro-hydraulic CNC press brakes at 100T / 300T / 400T / 500T, with R5–R100 tooling library and a 2,400T press for high-tonnage thick-plate forming including Q690D high-strength steel.

100 – 500T Press Brakes R5 – R100 Tooling 2400T Die Press Q690D Capable

04 · Rolling

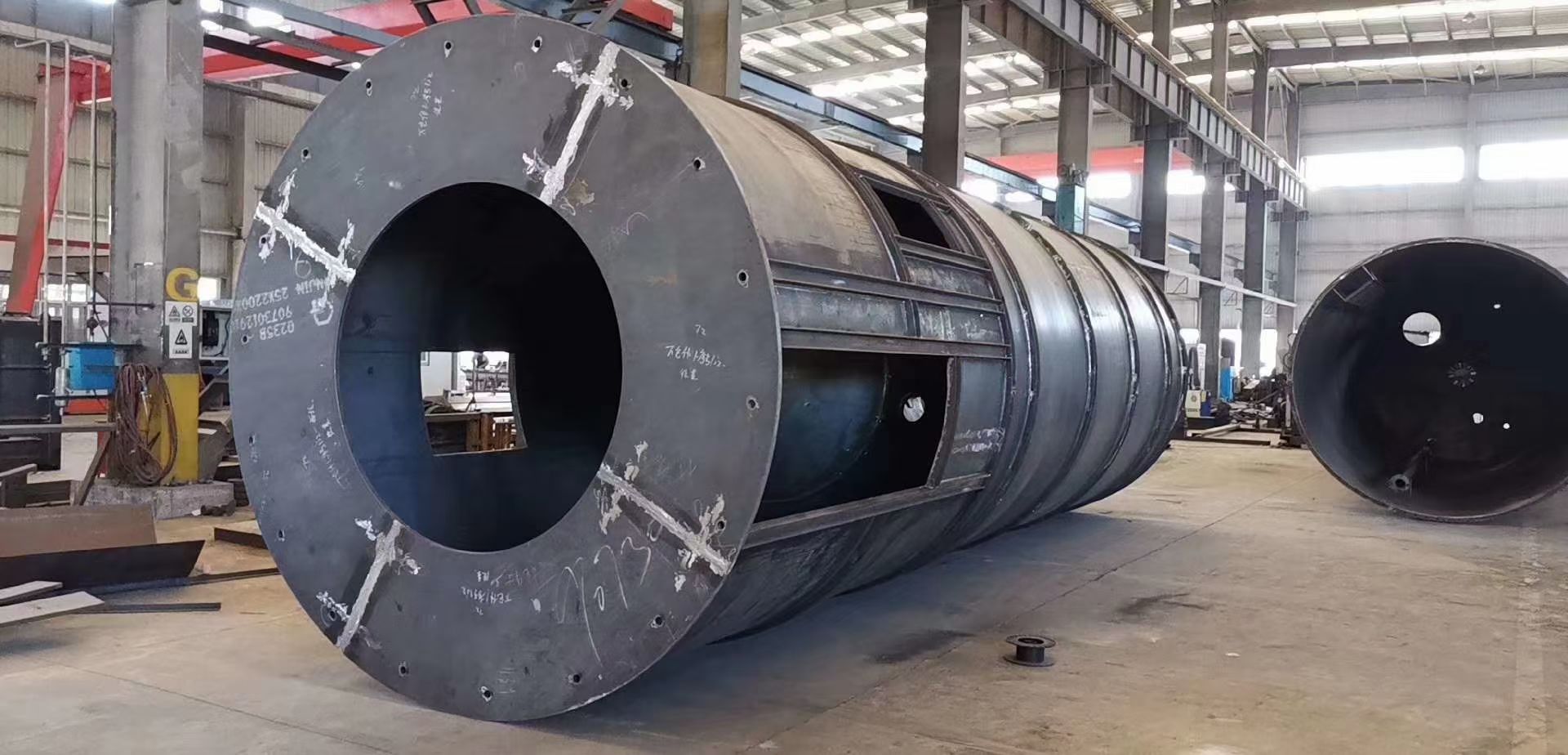

CNC Hydraulic Plate Rolling

Multiple CNC hydraulic and mechanical rollers — including a 50 mm × 2,800 mm CNC roller with cone-rolling capability. Workshop: 32T overhead crane, 16 m ceiling height, 180 m length. 5T/10T/25T welding positioners and 6m×6m automatic welding cross on-site.

50 mm × 2,800 mm Cone Rolling 32T Crane 180 m Workshop

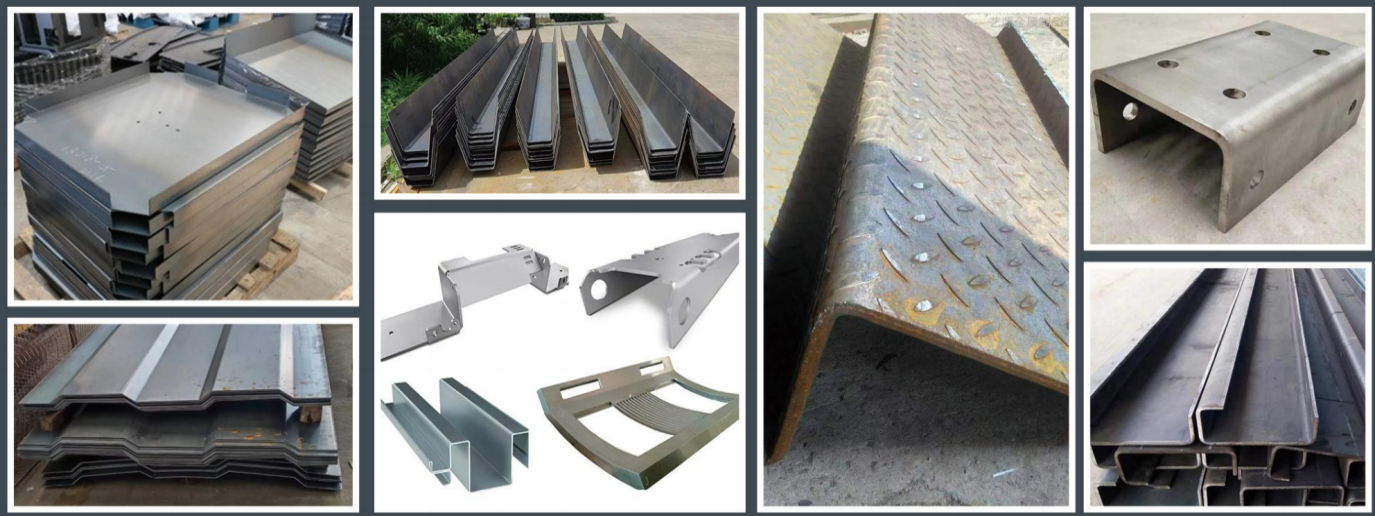

Bending · Finished Parts

Complex multi-bend assemblies

From simple brackets to intricate multi-bend housings and large-radius cylinder sections — every bend angle is verified against customer drawings with calibrated gauges before release to the next process stage.

Multi-bend Parts Large-radius Cylinders Angle Verified

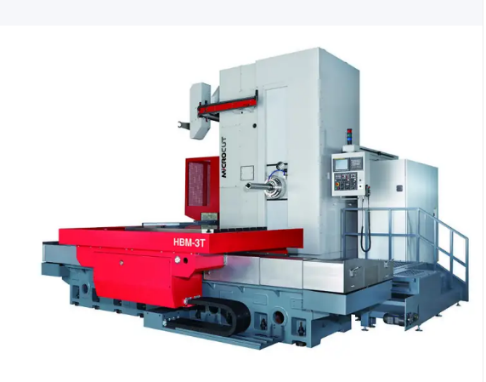

CNC gantry milling large structural frame

05 · CNC Machining

Large-scale CNC machining — up to 30 m

~20 machining centers: 2 CNC gantry mills, 2 large gantry mills, 1 large horizontal machining center, 2 CNC lathes, plus a flagship super-large gantry mill (5 m × 28 m). Handles shaft parts, flanges, box section faces, rail platforms, and steel wheels to Ø2,000 mm. ±0.003 mm precision. CMM on-site.

5m × 28m Gantry Mill 30 m Max Part ±0.003 mm Ø2,000 mm Wheels CMM Inspection

Lloyd's Register certified welders at work

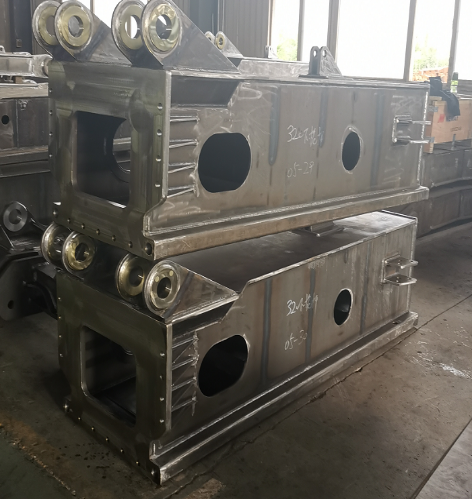

06 · Welding & Assembly

80 Lloyd's Register certified welders. IWE engineers.

IWE (International Welding Engineers) produce qualified WPS for every critical joint. Processes include SAW, TIG, MIG/MAG, laser, and robotic welding. Capable of multi-pass groove welds to 200 mm depth, super-large thin-wall box structures, and special materials — Q690D, stainless, aluminum. Full NDT: PT / MT / UT Level 2.

Lloyd's Register Certified SAW / TIG / MIG / Robot Q690D · Stainless · Aluminum 200 mm Multi-pass Groove NDT PT / MT / UT Lv.2

07 · Auxiliary Processes

Drilling, Tapping & Stress Relief

Go/no-go certified drilling & tapping to any international thread standard. Multi-mode beveling (flame / plasma / laser / machined). Plate straightening up to 200 mm thick (incl. Hardox wear-resistant). 4m × 2m annealing furnace + vibration stress relief (VSR).

International Thread Std. Multi-mode Beveling 200 mm Thick Plate 4m×2m Annealing Furnace VSR Available

08 · Surface Treatment

Sandblasting & Industrial Painting

One of the region's largest enclosed sandblasting & painting booths: workpieces up to 6 m × 6 m × 20 m. Multi-mode manual sandblasting eliminates blind spots on complex geometries. Finish grades Sa 2.5 to Sa 3 (ISO 8501-1). Full environmental permit compliance.

6m × 6m × 20m Booth Sa 2.5 – Sa 3 Complex Geometry Environmental Compliant

Quality & Digital Intelligence

Zero escape. Full traceability.

A 12-person QC team, CMM, NDT Level 2, and a proprietary MES system — every defect caught before it ships.

Quality Inspection System

12 full-time QC inspectors at every process stage
NDT Level 2: PT (penetrant) / MT (magnetic) / UT (ultrasonic)
Dozens of metrologically calibrated instruments
CMM (Coordinate Measuring Machine) for 3D part verification
Dedicated precision inspection platform
Full inspection records & quality files with every shipment
Sub-contractor process tracking included

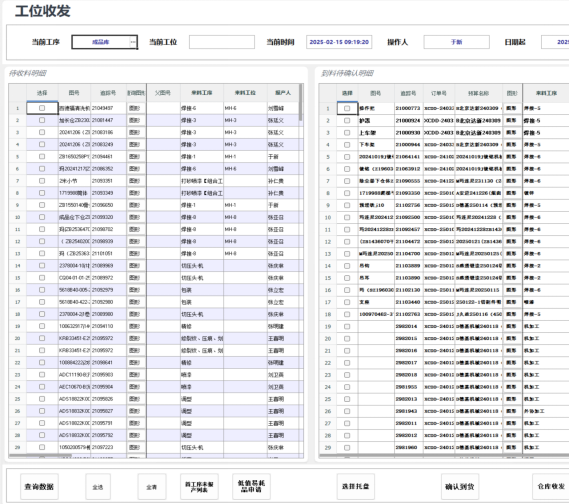

Proprietary MES System

Self-developed MES — software copyright protected
Fully integrated with ISO QMS workflows
End-to-end traceability: raw material → WIP → finished goods
Real-time production status across all stations
JIT flexible scheduling for concurrent multi-order production
Electronic work orders — paperwork eliminated
Exportable quality records for customer audit

Engineering Staff

✓ 2D / 3D CAD drawing interpretation ✓ 3D solid modeling & structural analysis ✓ Process design & optimization ✓ Welding fixture & tooling design ✓ Precision BOM costing & estimation ✓ Multi-process coordination management
